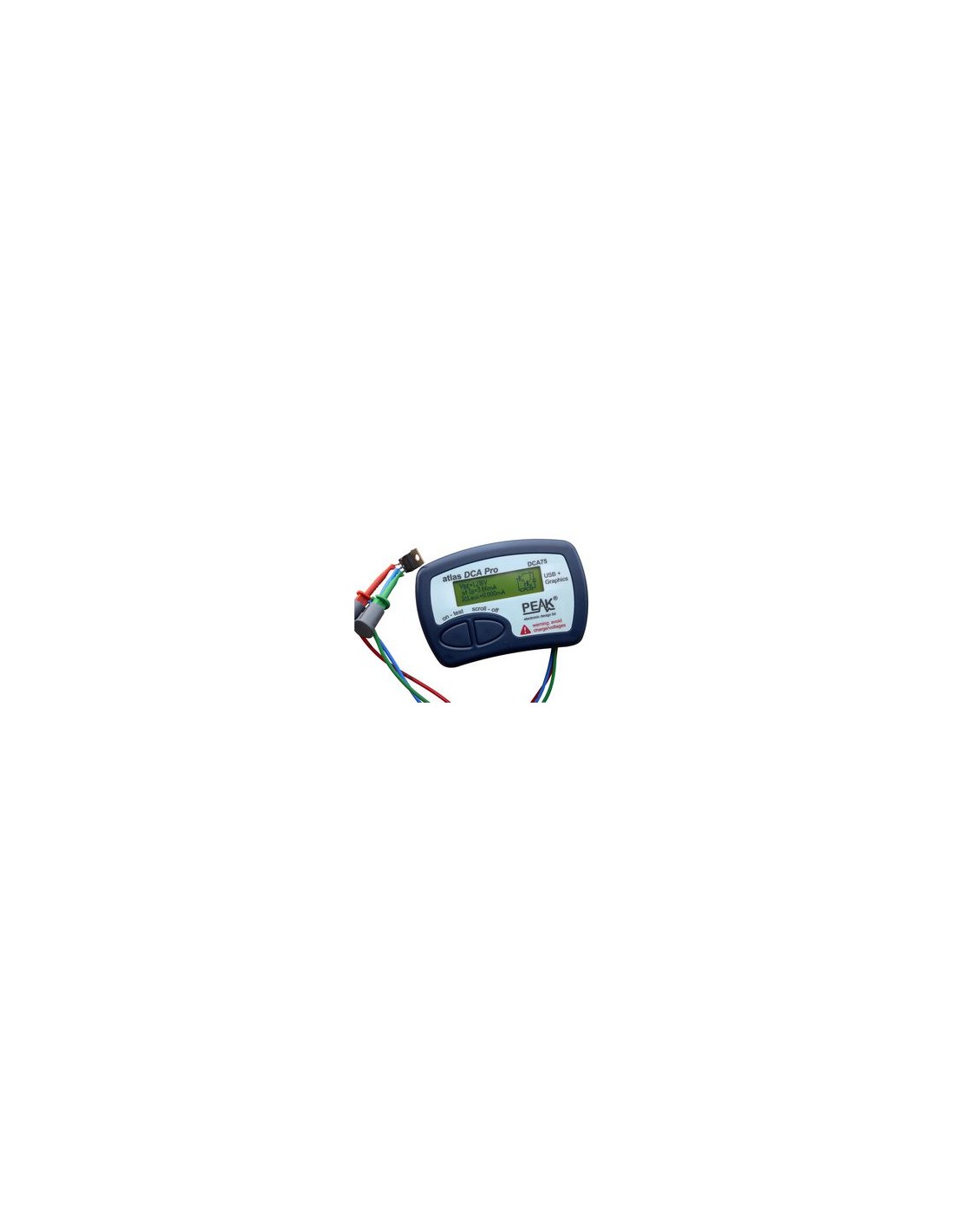

PEAK ELECTRONIC DCA75 - ANALIZZATORE COMPONENTI PRO

179,00 €
Tasse incluse

Atlas DCA PRO

Dotato di USB e di un display grafico, questo nuovo strumento rappresenta un passo in avanti, per l'analisi dei semiconduttori, rispetto al modello DCA55. Collegare il componente per vedere il dettaglio schematico sul display LCD, così come piedinatura e le misurazioni complete. Supporta IGBT, regolatori di tensione, MOSFET, JFET (compresi i tipi di SiC), transistor, diodi, LED, Triac (fino a 10mA), tiristori (fino a 10mA) e molto altro ancora. Misure di guadagno, transconduttanza, pinch-off e di più.
Include il software per PC su un flash drive USB per consentire l'analisi dettagliata dei componenti e funzioni tracciameto curva di bassa corrente.

The DCA Pro supports all the components that the popular Peak Atlas DCA55 supports, but adds plenty more. Components supported include:

  • Transistors (including Darlingtons), Silicon and Germanium types. Measures gain, VBE and leakage.
  • MOSFETs, enhancement mode and depletion mode types. Measure on-threshold (at 5mA) and approx transconductance (for span of 3mA-5mA).
  • JFETs, including normally off SiC types. Measures pinch-off voltage (at 1uA) and approx transconductance (for span of 3mA-5mA).
  • IGBTs (insulated gate bipolar transistors). Measures on-threshold (at 5mA).
  • Diodes and Diode networks.
  • LEDs and bicolour LEDs (2 lead and 3 lead types).
  • Zener Diodes with measurement of zener voltage up to 9V at 5mA.
  • Voltage regulators (measures regulation voltage <8V, drop-out voltage, quiescent current). Note that some regulators are not stable without their decoupling caps and/or minimum load and cannot be tested by the DCA75.
  • Triacs and Thyristors that require less than 10mA of gate current and holding current.
Stand-alone or with a PC
The instrument can be used stand-alone or connected to a PC. Either way, the DCA Pro will automatically identify the component type, identify the pinout and also measure a range of component parameters such as transistor gain, leakage, MOSFET and IGBT threshold voltages, pn characteristics and much more.
Curve Tracing
When connected to a PC using the supplied USB cable, a range of low current curve-tracing functions can be performed. Various graph types are available, with more to follow:
  • Bipolar transistor output characteristics, IC vs VCE.
  • Bipolar transistor gain characteristics, HFE vs VCE.
  • Bipolar transistor gain characteristics, HFE vs IC.
  • MOSFET and IGBT output function, ID vs VDS.
  • MOSFET and IGBT transfer function, ID vs VGS.
  • JFET output function, ID vs VDS.
  • JFET transfer function, ID vs VGS.
  • Voltage regulator, VOUT vs VIN.
  • PN junction I/V curves, forward and reverse options (for Zener diodes).

Curve tracing is performed using test parameters in the range of +/-12V, +/-12mA. All curve-tracing data can be instantly pasted into Excel© for further graphing and analysis. PC Software is included with the DCA Pro on a Peak USB memory stick. Software designed for Windows XP, Vista, Windows 7 and Windows 8 (automatically runs in Desktop Mode).

INCLUSO NELLA CONFEZIONE:

- Strumento completo di batteria AAA
- cavo micro USB
- PC software su USB flash drive
- manuale guida in inglese
